Product Introduction

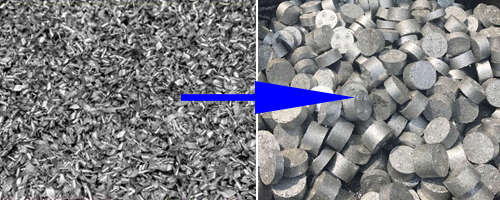

The aluminum chip briquetting machine is mainly used to directly cold-press the raw materials of aluminum sawdust and aluminum car chips into cylindrical cakes of 1 to 4 kg through high pressure. The whole process does not require heating, additives, or other processes to facilitate storage and transportation. And reduce the loss in the process of recycling.
working principle
Aluminum shavings briquetting machine consists of three parts: main engine, hydraulic pump and electrical console.
The briquetting machine uses the working principle of hydraulic cylinder expansion and contraction to achieve pressing. When the equipment is working, the rotation of the motor drives the hydraulic pump to work, and the hydraulic oil in the oil tank is delivered to the hydraulic cylinder through the oil pipe. The hydraulic valve can control the hydraulic oil to be delivered to the hydraulic cylinder. In different cavities of the oil cylinder, the movement of the piston rod of the oil cylinder causes the powder to be pressed and formed in the mold.
Applicable materials
Technical Parameters
| model | pie rulerInch | Cake density | block weight | shift production | power |
| 200 | Φ80-100 | 4.0-5.2 | 2-3 | 4-6 | 15 |
| 315 | Φ100-120 | 4.2-5.5 | 2-4 | 8-10 | 30 |
| 400 | Φ110-140 | 4.2-5.5 | 3-5 | 10-12 | 30 |
| 500 | Φ120-150 | 4.5-5.5 | 5-8 | 16-20 | 37 |
| 630 | Φ130-160 | 4.6-5.5 | 6-9 | 20-30 | 60 |
The above is the detailed technical parameter table of the aluminum chip briquetting machine, in which the forming size is determined according to your requirements, and we will give reasonable suggestions for which one to choose; if you want to press blocks of other shapes and sizes, we can also provide The equipment is customized, and the specific data is subject to the actual situation.
Application field
It is suitable for aluminum alloy profile factories, steel casting factories, aluminum casting factories, copper casting factories, auto parts, hardware and other casting related enterprises.
user site
