Product Introduction
Iron filings briquetting machine can press various iron filings (pig iron filings, ductile iron filings, cast steel filings, etc.) into high-density cylindrical cakes (weight 2-8 kg) without adding any binder. The block density can reach more than 5T/M3 (different raw materials, the density and weight of the extruded cakes are not the same), and the pressed cakes can be directly put into the furnace for use.
working principle
The frame part of the iron chip briquetting machine is made of integral steel castings, which prevents the cracking of the welded parts of the steel plate, and improves the reliability, stability and service life of the equipment. Using advanced hydraulic transmission technology and superimposed combination valve block, using excellent wear-resistant oil seal, the oil cylinder is processed and assembled by domestic new high-tech technology, so as to ensure continuous operation without weakening the pressure of the oil cylinder, durable and stable operation; computer control, high degree of automation, Low failure rate, easy maintenance, etc.

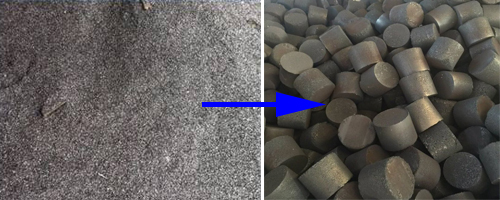

Applicable materials
Technical Parameters
| model | pie rulerInch | Cake density | block weight | shift production | power |
| 200 | Φ80-100 | 4.0-5.2 | 2-3 | 4-6 | 15 |
| 315 | Φ100-120 | 4.2-5.5 | 2-4 | 8-10 | 30 |
| 400 | Φ110-140 | 4.2-5.5 | 3-5 | 10-12 | 30 |
| 500 | Φ120-150 | 4.5-5.5 | 5-8 | 16-20 | 37 |
| 630 | Φ130-160 | 4.6-5.5 | 6-9 | 20-30 | 60 |
The above is the detailed technical parameter table of the iron filings briquetting machine, in which the molding size is determined according to your requirements, and we will give reasonable suggestions for which one to choose; if you want to press blocks of other shapes and sizes, we can also provide The equipment is customized, and the specific data is subject to the actual situation.
Application field
It is suitable for various metal chips, cast iron, nodular cast iron chips, grinding chips, iron ore powder, cast iron cutting waste and other raw materials, and is widely used in mechanical processing, processing workshops, steel casting plants, scrap metal recycling stations, etc.
user site
